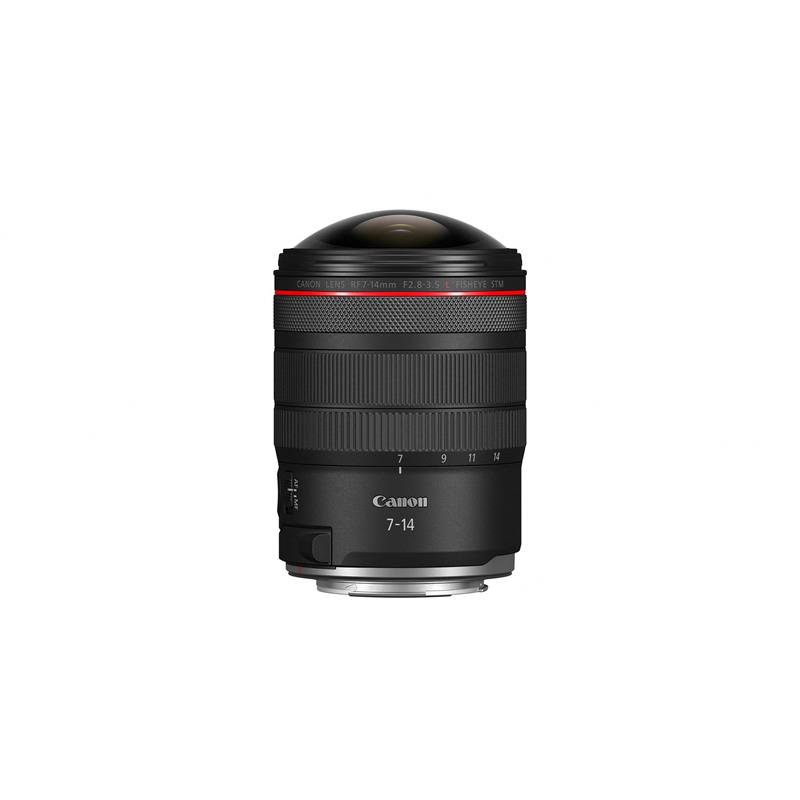

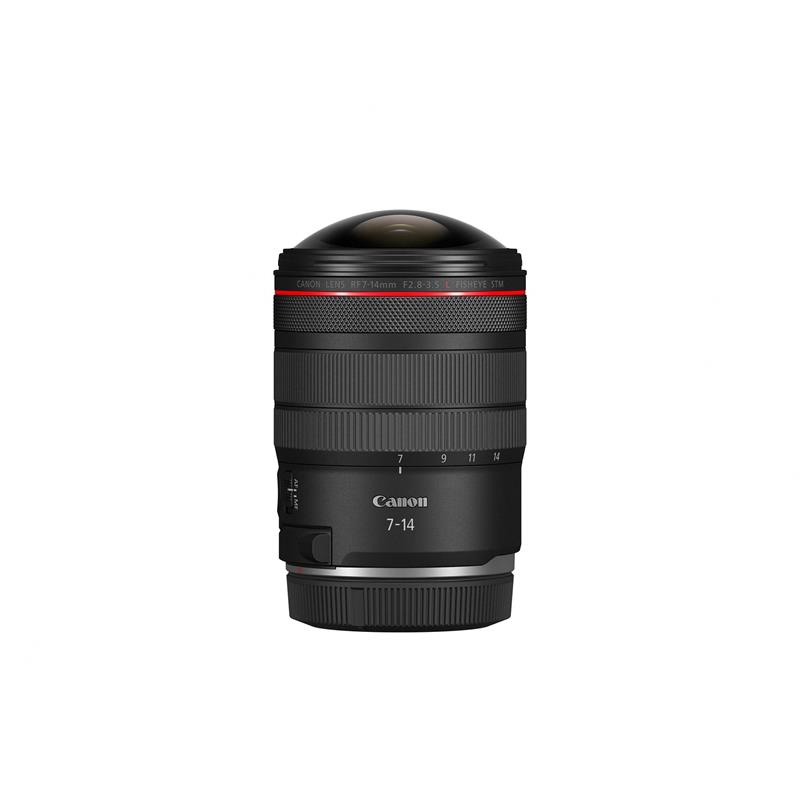

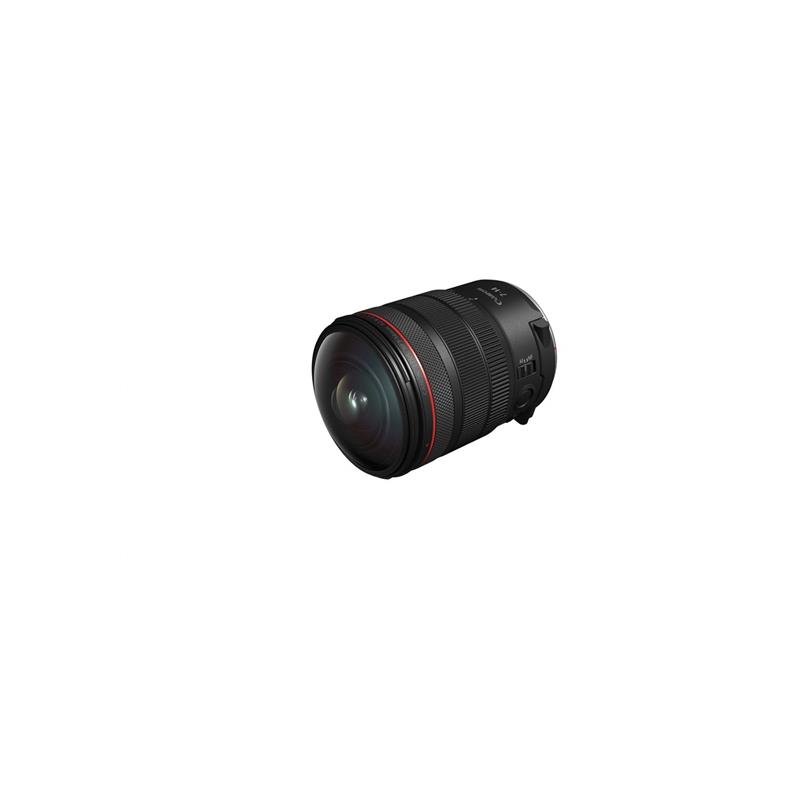

7-14mm F2.8-3.5L STM RF Lens - FishEye
The RF 7-14mm F2.8-3.5L Fisheye STM is a versatile and lightweight ultra-wide RF lens that lets you create differently. You're able to zoom between two dramatic fisheye views on full-frame cameras - capturing both 190° circular fisheye and 180° full-frame images. You can also convert the circular fisheye into a 2D 180° VR file for immersive 2D viewing on a VR headset. Built for professionals, the lens supports Canon's high-quality drop-in filter system and quiet leadscrew-type STM autofocus, and features L-series durability.
The RF 7-14mm F2.8-3.5L Fisheye STM is a specialist professional fisheye zoom lens that is unique in the RF range. It occupies a similar position as the EF 8-15mm F4L Fisheye USM did in the EF range - although it is more versatile, wider, faster and has superior image quality.
Unleash your creativity with a fisheye zoom lens
Go further with a 7-14mm zoom for 190° circular fisheye images at 7mm and 180° full-frame fisheye images at 14mm on full-frame cameras1, focusing as close as 0.15m for added drama.
Incredible edge-to-edge performance
Experience greater clarity, with two Replica Aspheric elements to suppress spherical aberrations, five UD elements to reduce chromatic aberrations, and ASC coatings to cut ghosting and flare.
Fast, accurate autofocus with brilliant results
Supremely smooth, near-silent leadscrew STM technology delivers precise focusing with minimal focus breathing. The fast F2.8-3.5 aperture ensures a bright image when light levels drop.
Effortless handling for stills and video
At approx. 476g, the lens is light and easy to use. A drop-in filter system offers intuitive creative control, further enhanced by the Lens Control Ring and Lens Function Button.
Engineered for reliable, confident shooting
Enjoy professional peace of mind thanks to a weather-resistant L-series construction2 and a fluorine coating on the front element that repels dirt for easier lens cleaning.
Transform your fisheye videos into immersive VR
The RF 7-14mm F2.8-3.5L Fisheye STM's equidistant projection enables 2D 180° VR video conversion in Canon's EOS VR Utility3, creating immersive VR experiences via a VR headset.
Key Features
- 190° angle of view1: Circular fisheye with a uniquely dramatic ultra-wide perspective
- 7mm circular and 14mm full-frame1 fisheye: Achieve two distinctive creative looks on a full-frame camera using one lens
- Circular fisheye with equidistant projection: Enables the capture and conversion of 2D 180° VR videos on supported cameras, with EOS VR Utility3
- F2.8-3.5 aperture: Fast and bright, ideal for low-light shooting
- Close focusing down to 0.15m: Enables even greater exaggeration of creative distortion
- Aspheric and UD elements: For superb image quality and maximum sharpness, right across the image
- Drop-in filter system: Creative control over lighting with optional Canon circular polarising and variable ND filters
- Lightweight at approx. 476g: Ultra-portable convenience for shooting handheld, video rigging and drone work
Notes:
*1 180° diagonal fisheye photography is possible on EOS R System cameras with APS-C sensors when the 'C' mark on the zoom ring is aligned with the C index (at approximately 8.7mm). The location of the zoom limit/lock switch at wide-angle does not guarantee a diagonal fisheye image for APS-C size.
*2 Although the lens features dust- and water-resistant construction, this cannot completely prevent dust or water droplets from entering the lens. Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which may cause slight abrasion of the camera mount. This in no way effects either the lens or camera performance.
*3 To record circular fisheye videos that can also be remapped into the equirectangular projection by Canon's EOS VR Utility for 2D 180° VR viewing, you will need a compatible camera that supports Open Gate video recording.
| Specifications |
|
| Focal Length - Wide (mm): |
7 |
| Focal Length - Tele (mm): |
14 |
| Filter Size (mm): |
Rear drop-in filter A |
| Image Stabilization: |
N/A |
| Angle of View: |
190°-180° |
| Aperture Blades: |
9 |
| Lens Groups: |
16 elements in 11 groups |
| Lens Mount: |
Canon RF |
| Lens Type: |
Ultra-Wide Angle Zoom |
| Max Aperture - Tele: |
F29 |
| Max Aperture - Wide: |
F22 |
| Maximum Format Size: |
Full Frame |
| Minimum Aperture: |
F22-29 |
| Minimum Focus Distance (m): |
0.15 |
| Dimensions |
|
| Size: |
Diameter — 76.5mm
Length — 109.4mm (retracted) |
| Weight (g): |
476 |
- Includes:
- RF 7-14mm F2.8-3.5L Fisheye STM Lens
- Lens Cap 7-14
- Lens Dust Cap RF
- Lens Hood EW-76
- Lens Case/Pouch LP1219
