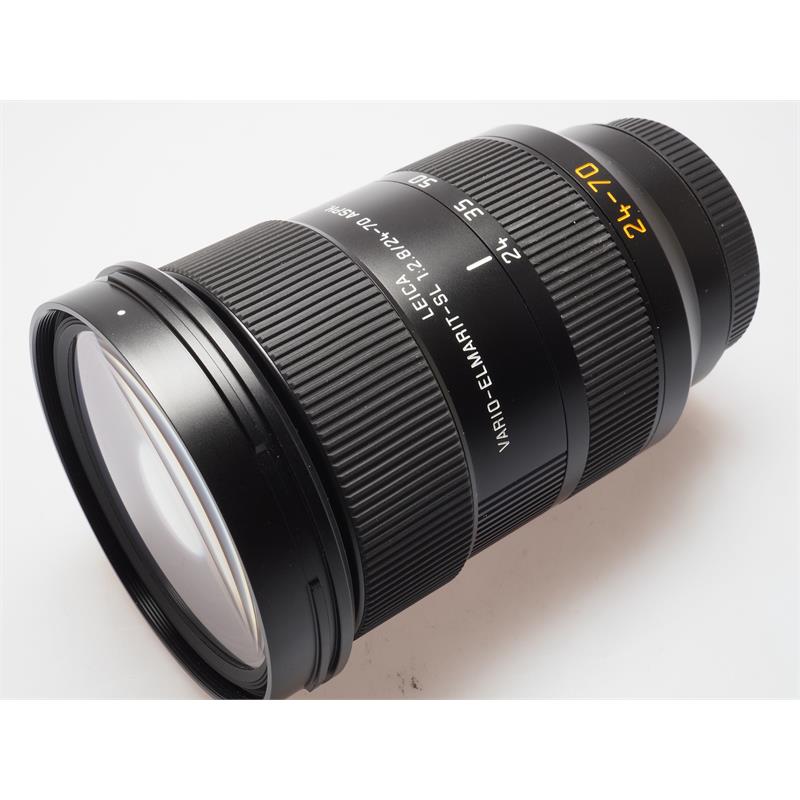

Leica 24-70mm F2.8 Asph Vario-Elmarit SL

24-70mm F2.8 Asph Vario-Elmarit SL

24-70mm F2.8 Asph-Vario-Elmarit-SL
Compact standard-zoom with constant aperture F2.8.
High imaging performance and very well corrected chromatic aberrations.
18 cm close focusing distance.
Extremely fast and quiet autofocus.




View angle (D / H / V ):
Full-frame (24 x 36 mm)
24 mm: 82.3o/72.1o/51.8o ¦ 70 mm: 35.3o/29.6o/20.0o

Lens system:
Number of lenses/assemblies
19/15


Number of aspherical surfaces
6


Position of the entrance pupil before the bayonet
24 mm: 88,6 mm ¦ 70 mm: 57,1 mm


Focus range
24 mm: 0,18 m to infinity ¦ 70 mm: 0,38 m to infinity

Focusing:
Setting
Choose automatic (Autofocus) or manual mode on the camera


Smallest object field
Full-frame: 24 mm: 69 mm x 104 mm ¦ 70 mm: 108 mm x 162 mm


Largest scale
24 mm: 1:2,9 ¦ 70 mm: 1:4,5

Aperture:
Setting/Function
Electronically controlled aperture, setting on the camera, half or third values can also be set


Smallest aperture
22

Bayonet:

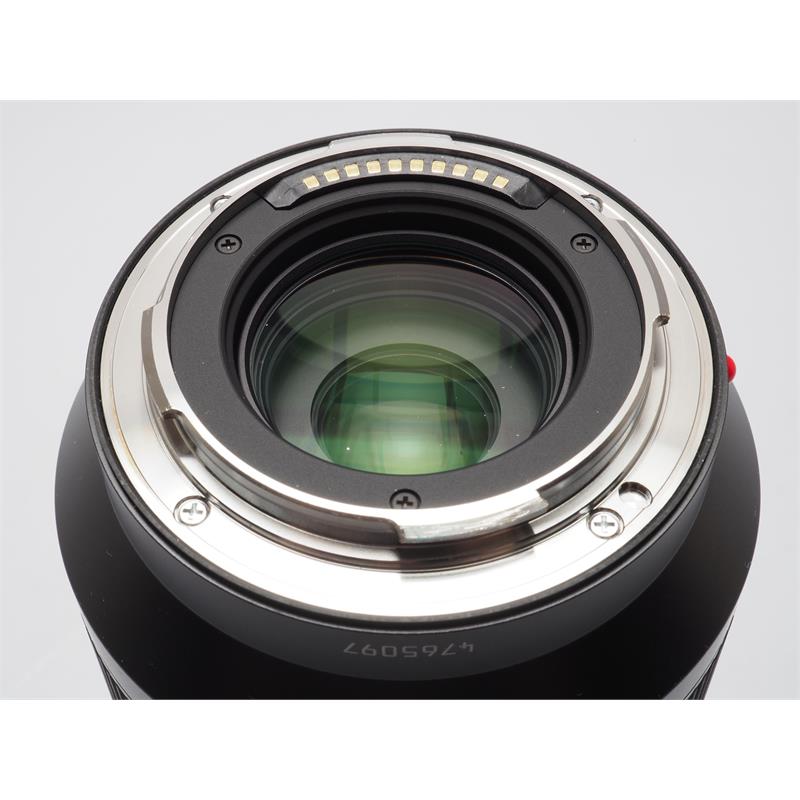

Leica L bayonet fitting with contact strip

Filter thread:
E82

Lens hood:
External bayonet fitting for lens hood (included)


Dimensions:


Length
approx. 123/153 mm (without/with lens hood)

Diameter
approx. 88/97 mm (without/with lens hood)

Weight
approx. 856/906 g (without/with lens hood)
