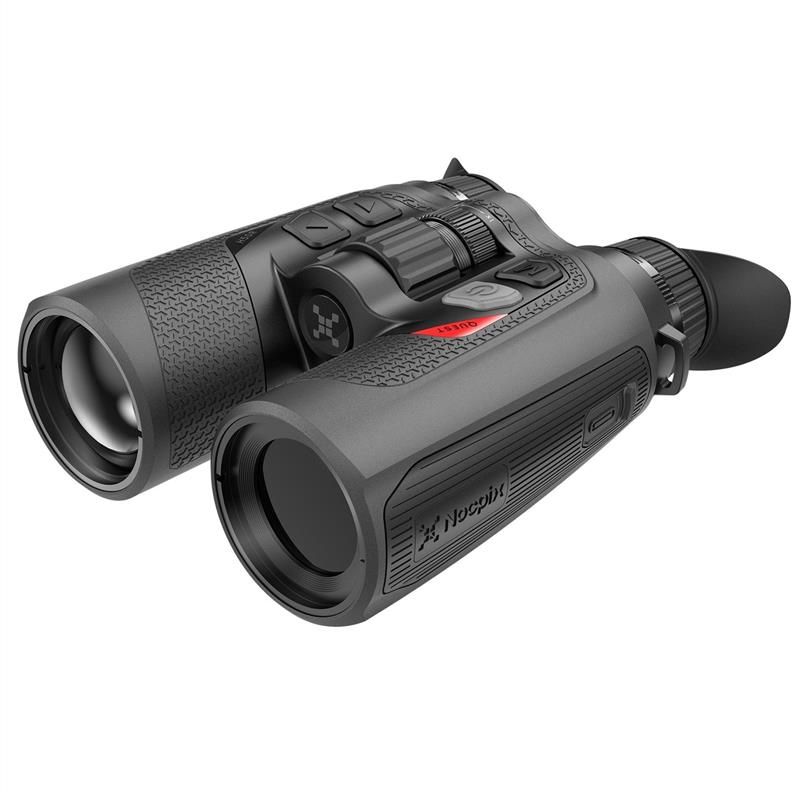

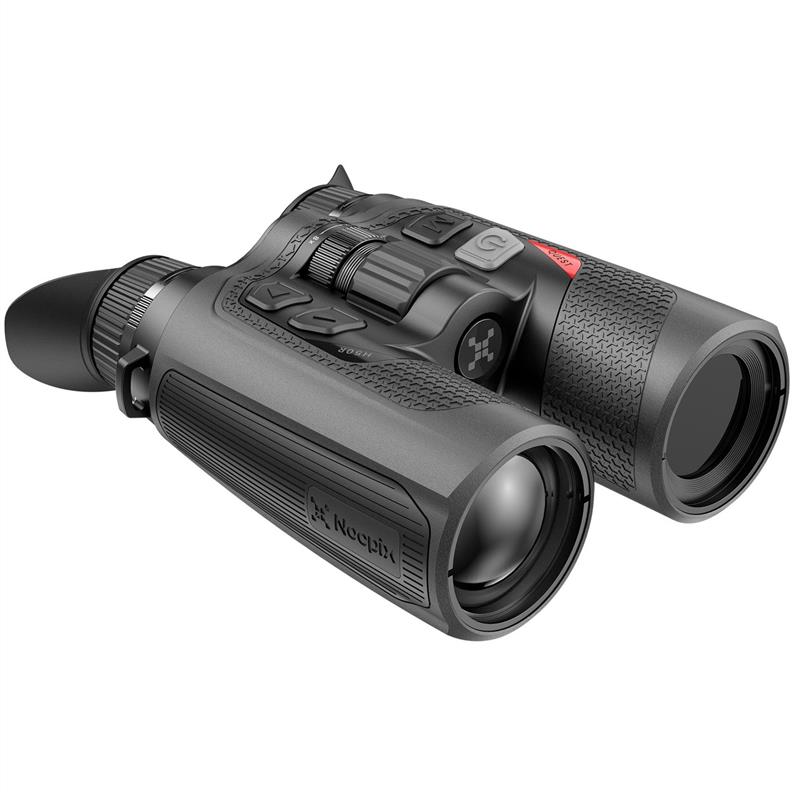

Nocpix Quest L35R Binocular - Range Finder

Quest L35R Binocular - Range Finder

Nocpix Quest L35R

The Traditional Binocular Experiece
The QUEST Series offers a traditional binocular feel, with a high-performance thermal sensor, 60Hz frame rate, and integrated LRF.
All housed in a lightweight, full-rubber coated, waterproof body. With in-house developed sensor technology and advanced
Reality+ AI image algorithms, it delivers an immersive, eye-friendly viewing experience.

Equipped with a high-performance sensor that delivers exceptional image clarity.
With a NETD =15mK and a 60Hz frame rate, it ensures superior thermal sensitivity, providing clear and visuals even in the most
challenging environments

The QUEST features a detection range of up to 2600m and a built-in concealed LRF with a range of up to 1000m, allowing you to
see farther and more accurately than ever before.

- 4-button layout and middle - positioned scroll wheels for easy one-handed control.
- At only 700g, it offers portability and comfort for outdoor activities. Includes custom carry bag.
- Dual-battery design with a built-in 4200mAh and replaceable 18650 battery.


Key Features:
Vision+ System and Reality+ AI
Integrated LRF upto 1000m
Lightweight and Portable
One-Handed Operation
Electronic Image Stabilization
Built-In and Replaceable 18650 Battery

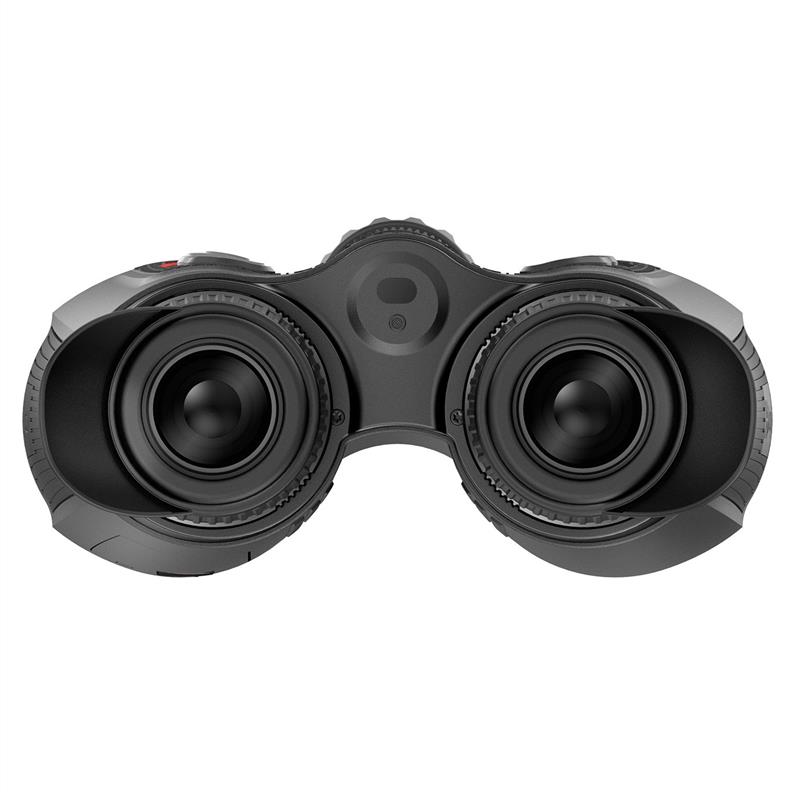

10mm Exit Pupil
Photo/Video/MIC/64GB
7 Distinct Colour Palettes







Specifications


Thermal Sensor Resolution:
384 x 288px

Thermal Sensor Pixel Pitch :
12µm

NETD, mK:
=15

Frame Rate:
60Hz

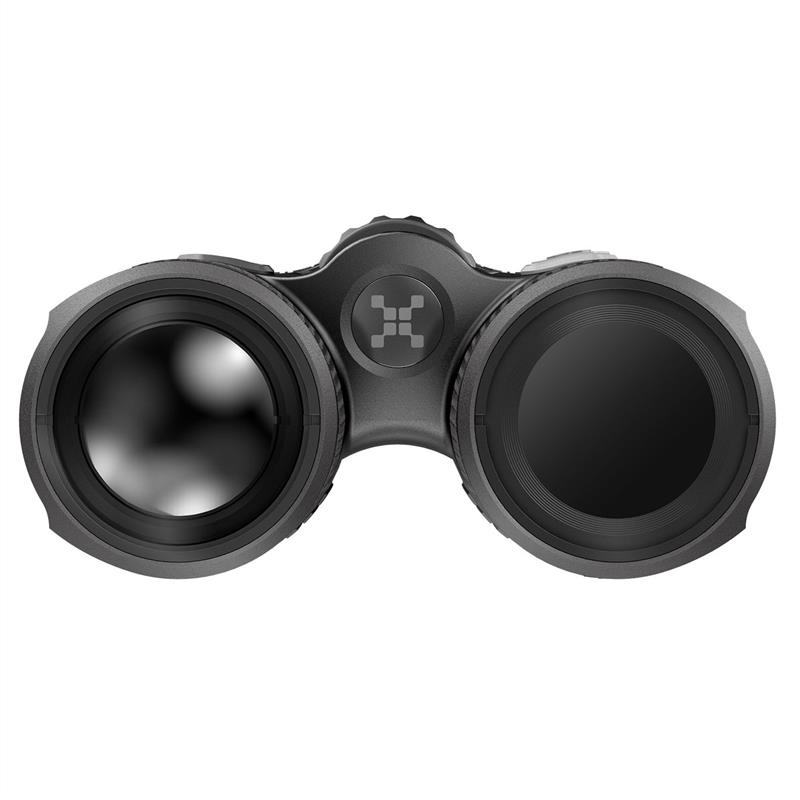

Objective Lens/Tube :
35mm F0.9

Field of View (H×V):
7.5 x 5.7°

Magnification:
5-20x

Detection Range:
1800m

LRF Ranging Dist. :
1000m

Display:
1920x1200px, AMOLED

Battery:
Built-in battery/4000mAh + Replaceable 18650 battery

Max. Operating Time:
6h

Weight:
< 700g (without replaceable battery)

Dimensions:
160 x 137 x 60mm

IP Rating:
IP67
