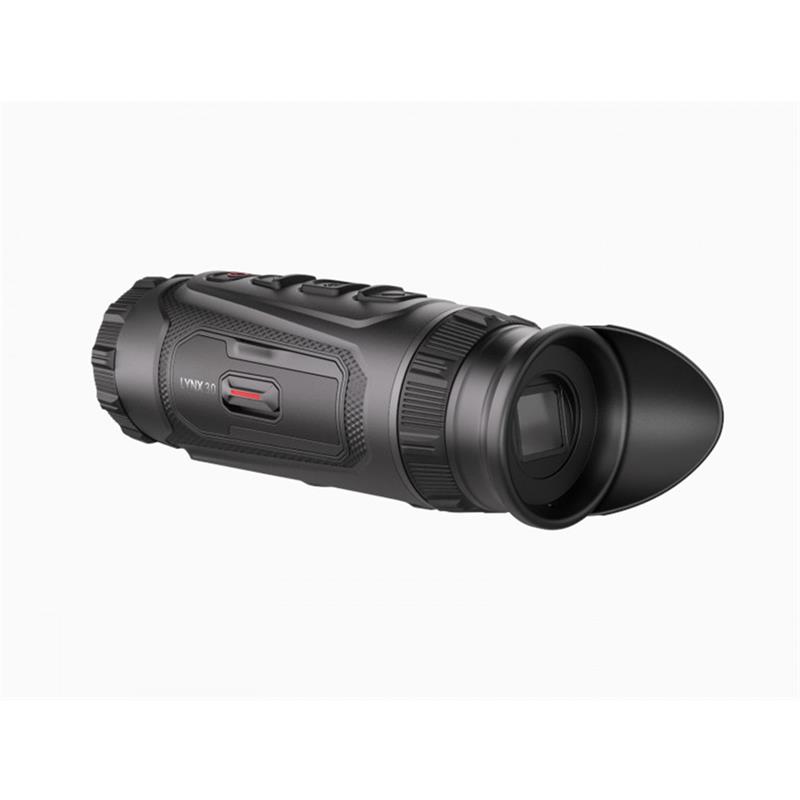

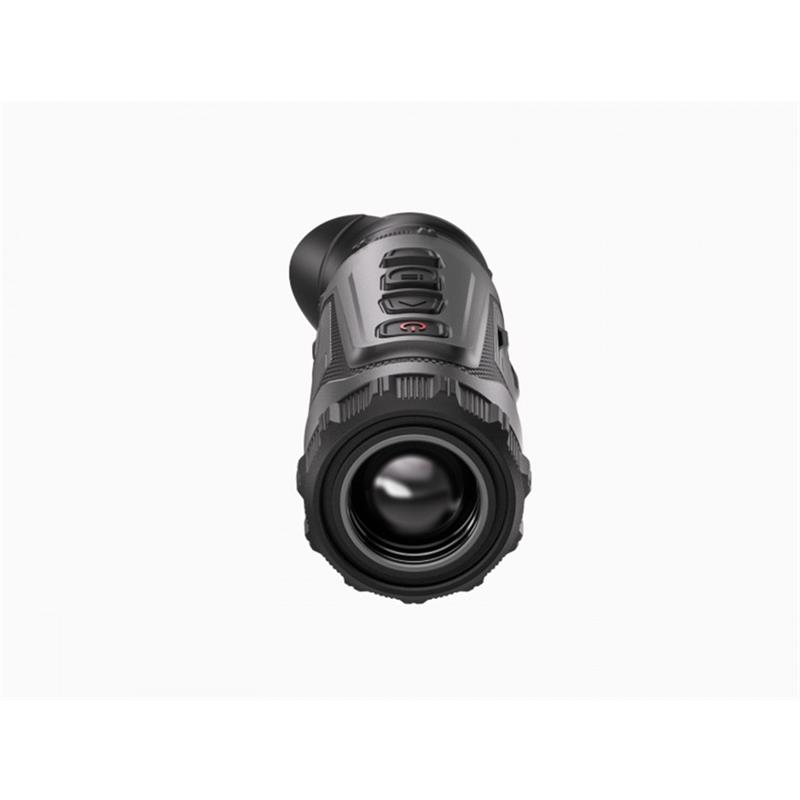

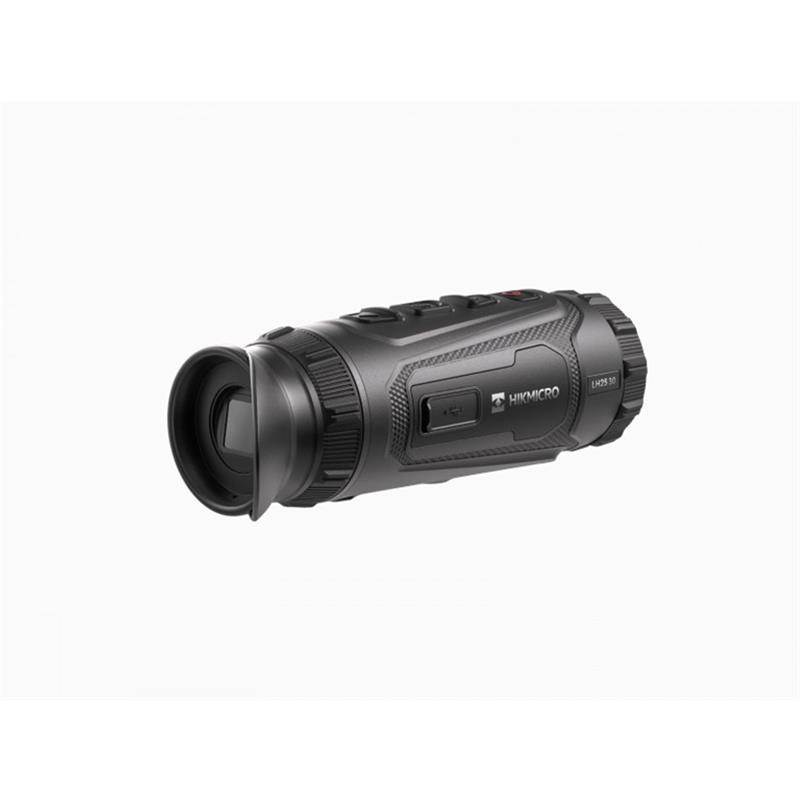

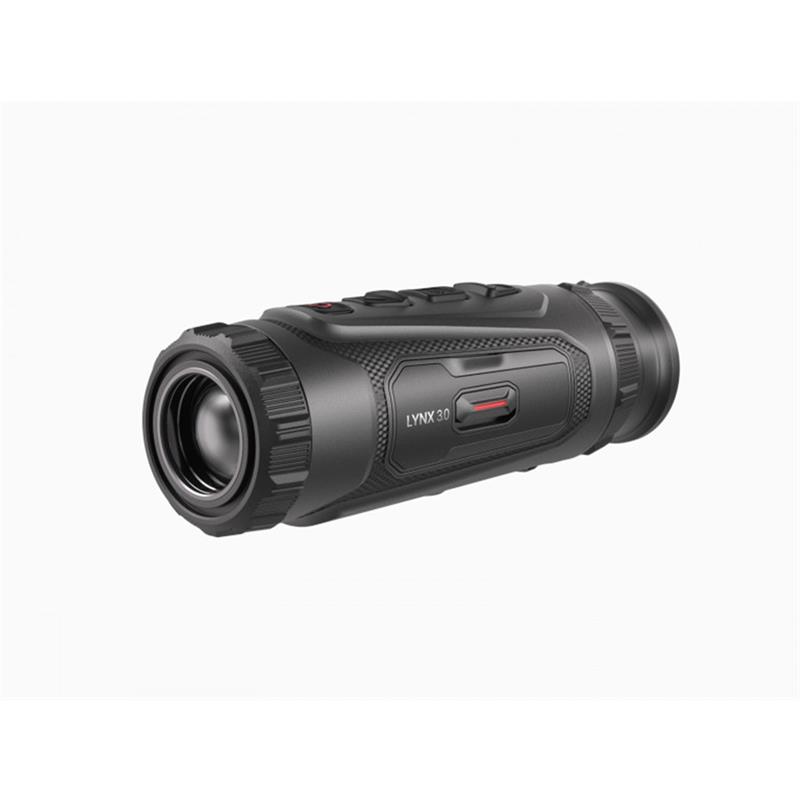

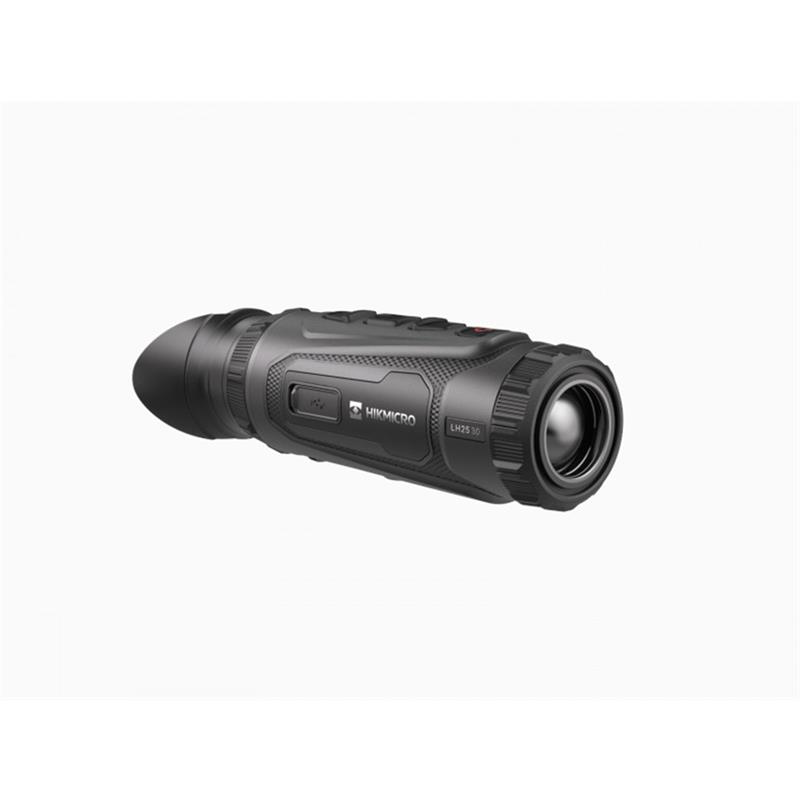

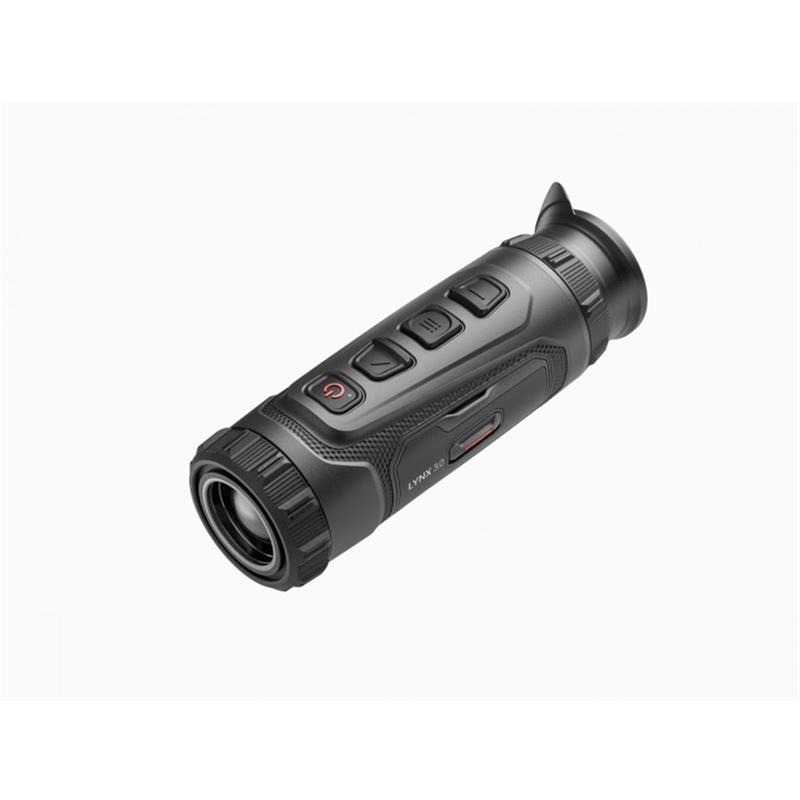

Hikmicro Lynx 3.0 LH25 Thermal Monocular

Lynx 3.0 LH25 Thermal Monocular

HIKMICRO Lynx 3.0 25mm Thermal Monocular - LH25

The Lynx 3.0 , redefining entry-level thermal imagers..
The HIKMICRO Lynx 3.0 LH25 is built for professionals requiring extended range and precision. With a 384x288 thermal
detector and a 25mm F1.0 lens, it delivers 2.5x base magnification, a 10.5° field of view, and a 1200-metre
etection range, ensuring exceptional long-distance performance.

Driven by AI Image Pro 3.0 and Zoom Pro algorithms, the LH25 enhances image detail and consistency under all lighting conditions.
Its HSIS shutterless system ensures fluid, silent image processing for uninterrupted use in tactical or wildlife applications.

Weighing only 328.5 grams, the LH25 combines portability with rugged dependability. The replaceable 18650 battery powers up to 4.5 hours at -20°C, ensuring sustained
operation for demanding professionals.

Designed for open landscapes and technical use, it sets a new standard in thermal imaging efficiency.




Key Features:
384×288 thermal detector with NETD < 15 mK
25mm F1.0 lens with 1200m detection range
AI-powered Image Pro 3.0 and Zoom Pro algorithms
HIKMICRO Shutterless Image System (HSIS)
0.49" 1920×1080 AMOLED display
Up to 4.5 hours' operation at -20°C
Lightweight, pocket-sized 328.5g design







Specifications


Image Sensor:
VOx Uncooled Focal Plane Arrays

Max. Resolution:
384 × 288

Frame Rate:
50 Hz

Pixel Interval:
12 µm

Response Waveband:
8 µm to 14 µm

NETD:
Less than 15 mK (@25°C), F#=1.0

Lens (Focal Length):
25 mm, F1.0

Focus Mode:
Focus Wheel

Min. Focusing Distance:
3 m

Magnification:
2.5 × - 20 × (8×)

Field of View, Degrees / m @100 m:
10.5° × 6.4° / 18.4 m × 11.2 m (H x V)

Detection Range:
1200 m

Display:
1920 × 1080, 0.49 inch, AMOLED

Contrast Adjustment:
Yes

Brightness Adjustment:
Yes

Palettes:
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome

Exit Pupil:
6 mm

Eye Relief:
20 mm

Diopter (Range):
-5 D to +3 D

Tone Adjustment:
Cold, Warm

Zoom Pro:
Yes

HSIS (HIKMICRO Shutterless Image System):
Yes

Image Pro 3.0:
Yes

Sync Pro:
Yes

Battery Type:
Replaceable and rechargeable 18650 battery

Protection Level:
IP67

Weight (g):
328.5 g with Battery
