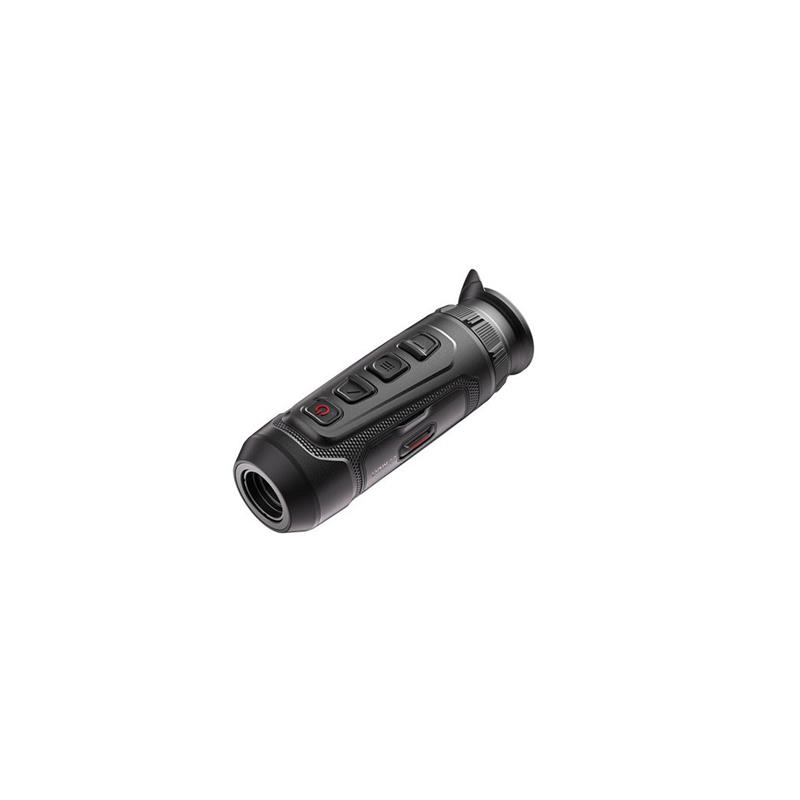

Hikmicro Lynx 3.0 LE15 Thermal Monocular

Lynx 3.0 LE15 Thermal Monocular

HIKMicro LE15 LYNX 3.0
HIKMICRO LYNX 3.0 is a compact and lightweight thermal monocular designed for portability and ease of use. With enhanced image quality
powered by higher thermal sensitivity and AI-powered image algorithms, it ensures exceptional clarity and detailed recognition, even in challenging weather conditions, day or night.


Well suited for
hunting,
birding,
wildlife observation,and
search-and-rescue missions,it sets a new standard for performance and reliability.



Image Pro 3.0:
Featured with Image Pro 3.0 imaging algorithm, LYNX 3.0 delivers minimal details of animal's characteristics and layered
backgrounds with less noise.



HSIS (HIKMICRO Shutterless Image System):
LYNX 3.0 supports shutterless technology, it is a dynamic learning process without image quality loss. This eliminates the need for periodic calibration pauses, ensuring you never miss a critical moment in the field.



Local Album:
Local album stores captured images and recoil activated videos, which help you clarify whether you get the game immediately.



Video and Snapshot:
The built-in memory module supports video recording and snapshot capturing.



App Connection:
The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight app after being connected to your phone via hotspot.



Zoom Pro:
This function enhances the details of zoomed live view images, allowing for clearer and more refined visuals.









Specifications



Thermal Module
Image Sensor
VOx Uncooled Focal Plane Arrays


Max. Resolution:
320 × 240


Frame Rate:
50 Hz


Pixel Interval:
12 µm


Response Waveband:
8 µm to 14 µm


NETD:
Less than 18 mK (@25°C),F#=1.0


Lens (Focal Length):
15 mm, f1.0


Focus Mode:
Focus Free


Detection Range:
750 m


Min. Focusing Distance:
7.0 m


Magnification:
2.2× - 17.6× (8× )


Field of View(H × V), Degrees:
11.7° × 8.8°


m @100m
20.5 m × 15.4 m

Image Display
Display:
1024 × 768, 0.39 inch, AMOLED


Palettes:
Black Hot, White Hot, Red Hot, Fusion,
Red Monochrome, Green Monochrome


Exit Pupil:
6 mm


Eye Relief:
20 mm


Diopter (Range):
-5D to +3D


Brightness Adjustment:
Yes


Tone Adjustment:
Cold, Warm


Contrast Adjustment:
Yes


Zoom Pro:
Yes


HSIS:
Yes (HIKMICRO Shutterless Image System)


Image Pro 3.0:
Yes

System
Record Video:
Yes


Capture Snapshot:
Yes


Audio Recording:
Yes


Standby Mode:
Yes


Built-in Memory:
Built-in EMMC (64 GB)


PIP:
Yes


Hotspot:
2.4 GHz/5 GHz Wi-Fi Waveband


Hot Track:
Yes


Distance Measurement:
Yes


Local Album:
Yes

Power Supply
Battery Type:
Replaceable and Rechargeable
Li-ion 18650 Battery


Battery Operating Time:
5.5-hour continuous running with hotspot on (@25°C)
5-hour continuous running with hotspot on (@-20°C)


Type-C Power Supply:
5V DC, 2 A, Supports External Power Supply,
Support Direct Charging

General
Protection Level:
IP67


Dimension:
156.3 × 53.6 × 49.5 mm


Weight:
296.5 g with battery


Working Temperature:
From -30°C to 45°C (-22°F to 113°F),
Humidity: 90% or Less
