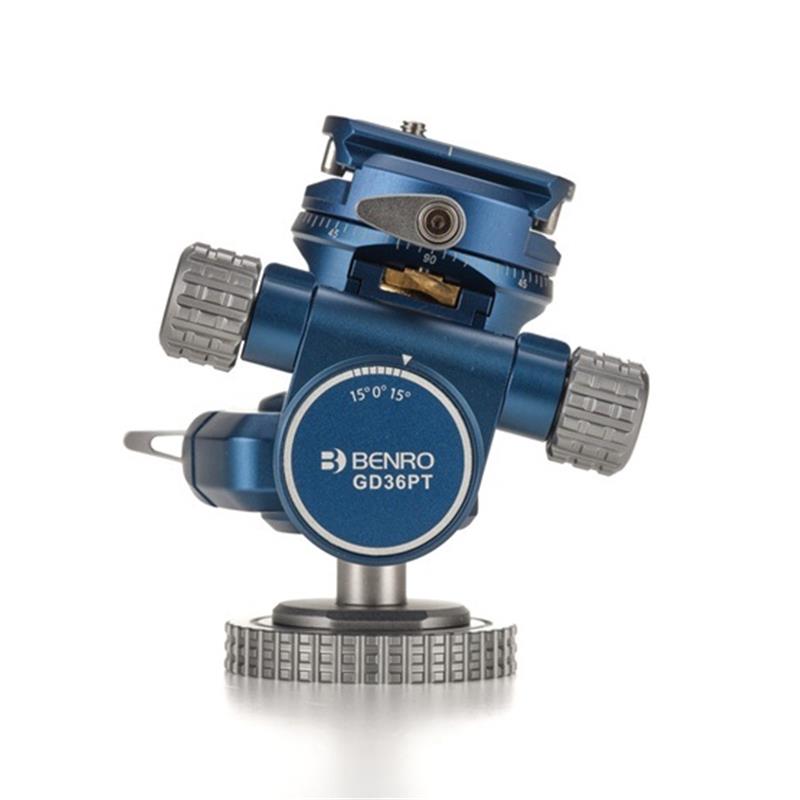

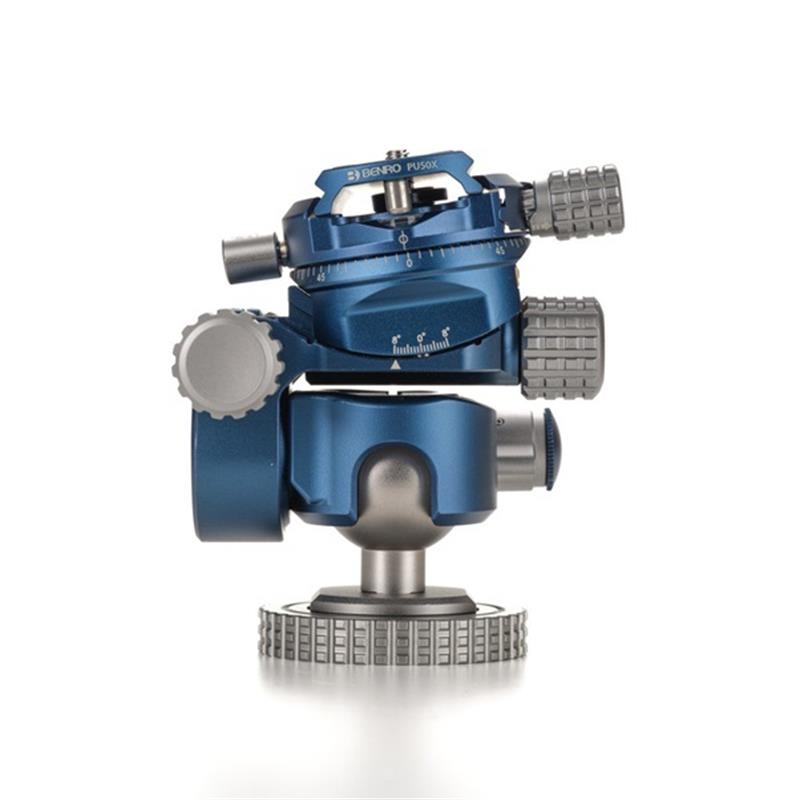

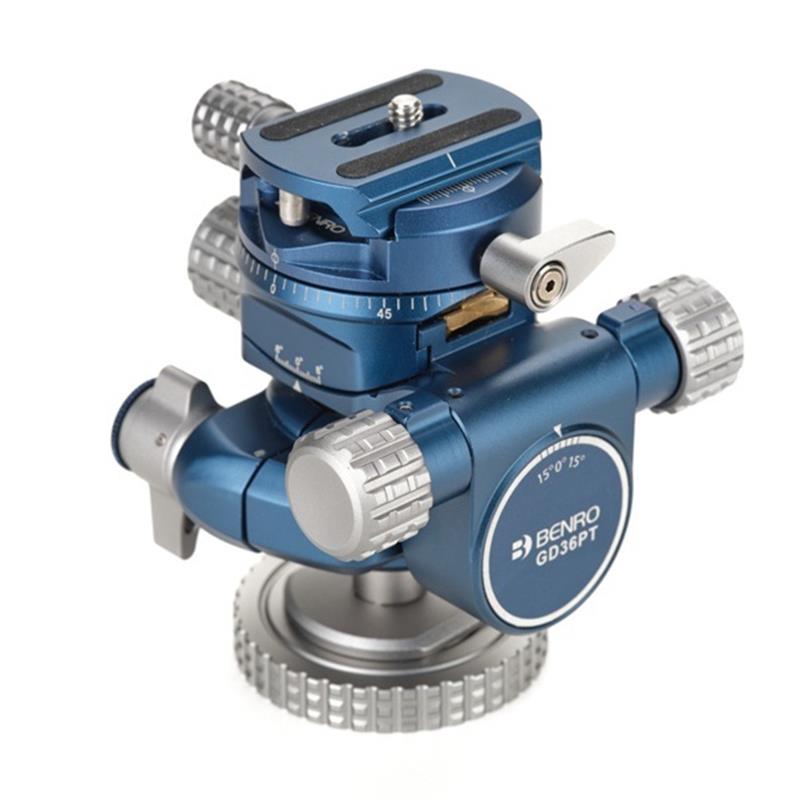

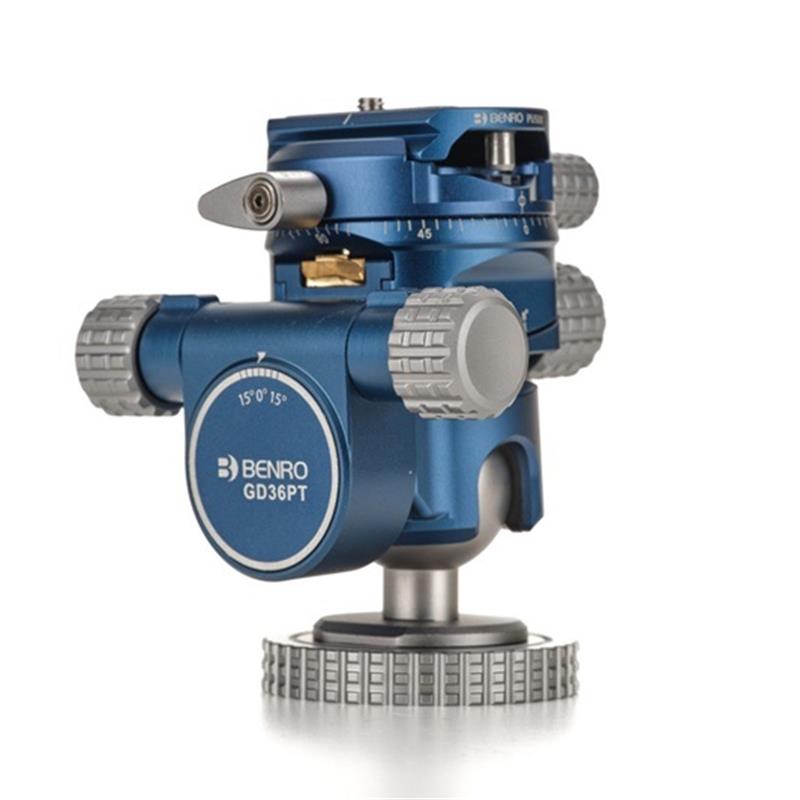

The GD36PT Geared Drive Three-Way Head is designed for photographers who need both rapid camera positioning and precise control. Its innovative inverted ball head design allows for quick general adjustments, while its dual-axis brass gearing system enables micro-adjustments for precise camera positioning. Key Features: Hybrid Design: Combines the speed and versatility of a ball head with the fine-tuned control of a geared head. Smooth Brass Gears: Durable gears offer superior wear resistance and ultra-smooth, precise movement. Two-Way Geared Adjustments: Provides 8° of pitch and 15° of side-to-side tilt for pinpoint accuracy. 360° Pan Control: Enables seamless panoramic panning with a fully graduated scale for reference. 90° Vertical Slot: Supports fast and accurate landscape to portrait camera movements. Versatile Attachment Options: The head will attach to a standard male 3/8" tripod thread, or the base platform can be removed to reveal an Arca-compatible foot that will fit in the jaws of another Arca-compatible head. The GD36PT is ideal for photographers who shoot product, architectural, landscape, and studio work and need precise control over composition.
Specifications
Weight (kg): 0.74
Product Height (cm): 11.5
Product Length (cm): 9.8
Product Width (cm): 9.8
Ball Diameter (mm): 36
Base Mount Diameter (mm): 42(Head)/62(Head base)
Base Mount Thread: 3/8
Bubble Level: Yes
Head Type: Geared Ball Head
Maximum Payload Capacity (kg): 6
Pan Lock: Yes
Panning Range: 360°
QR Plate - Length (cm): 5.6
QR Plate - Width (cm): 3.8
Quick Plate Safety Mechanism: Yes
Quick Release Camera Thread Size: 1/4
Quick Release Plate Lock: With security mechanism
Quick Release Type: Arca Style
Separate Panning Lock: Yes
Tilt Lock: Yes
