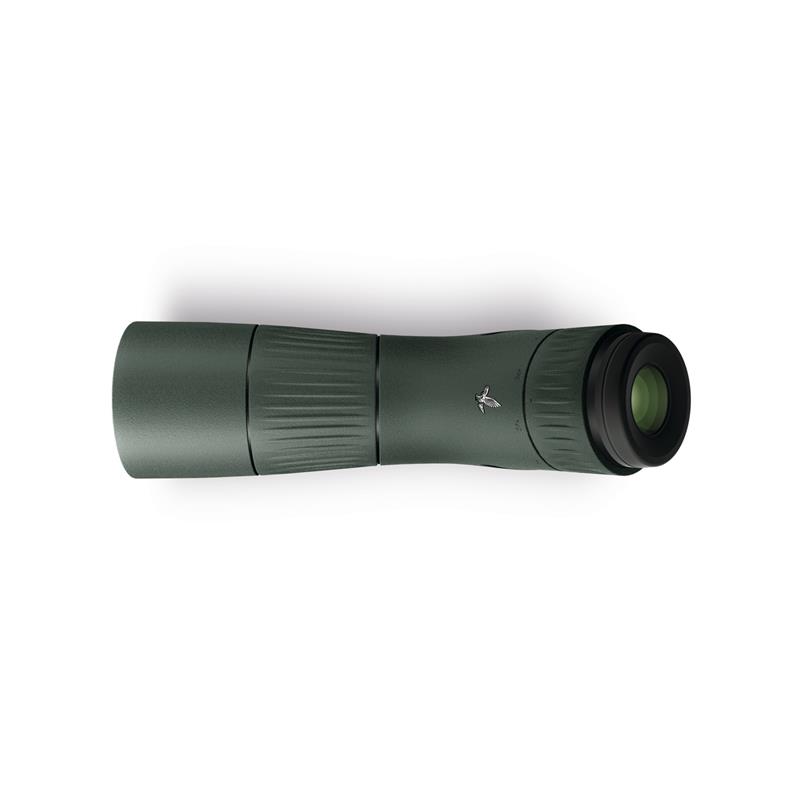

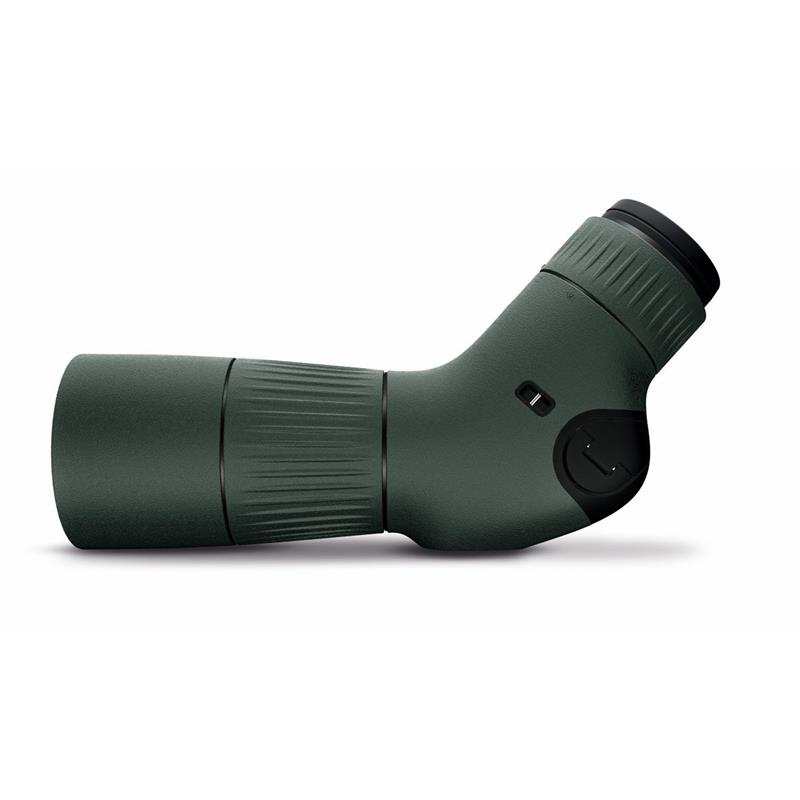

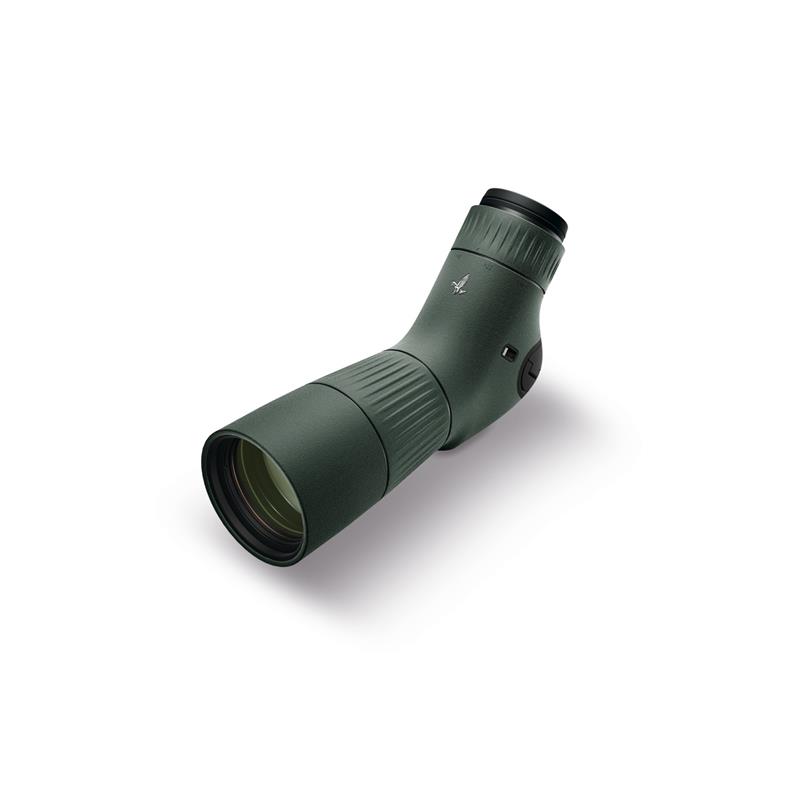

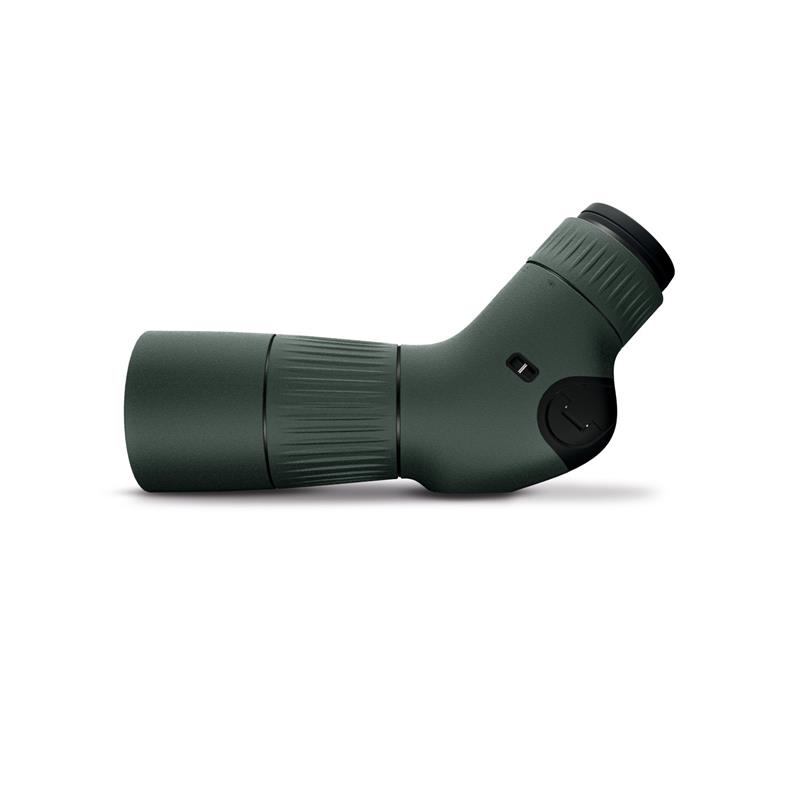

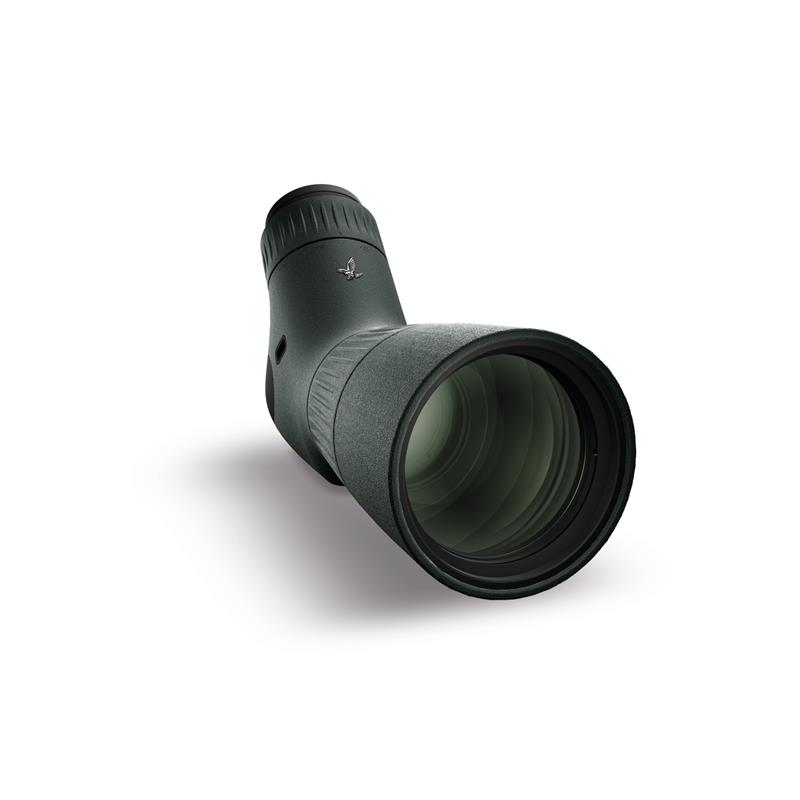

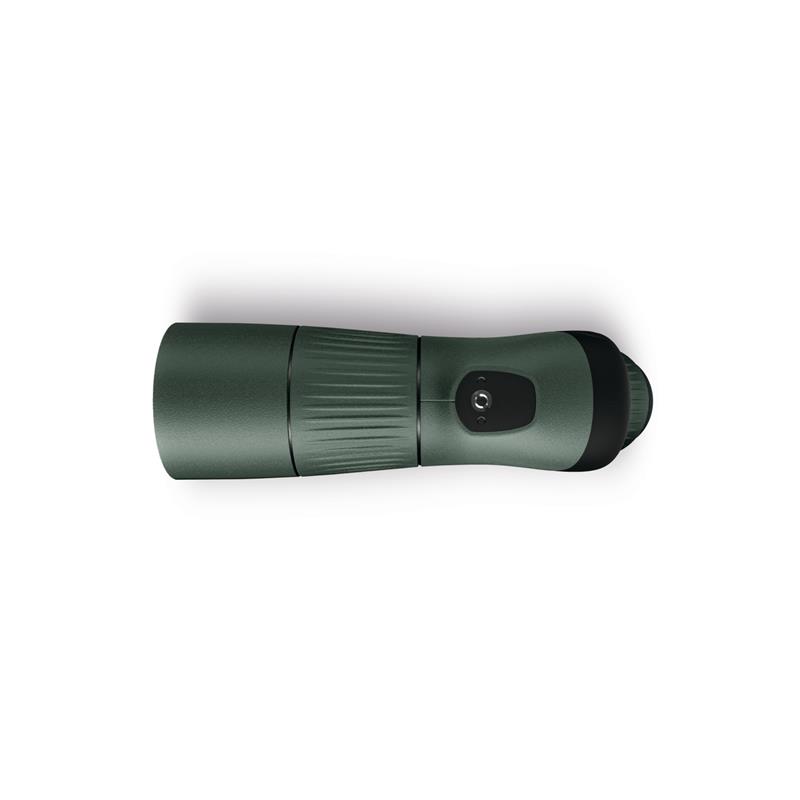

AT Balance 18-45x65 Green
With advanced Shake-Free Image Stabilization, the AT/ST Balance keeps your view perfectly stable — even at high magnification or in challenging conditions. At the heart of the AT/ST Balance lies SWAROVSKI OPTIK's renowned optical excellence. Nature doesn’t wait — and neither should you. The AT/ST Balance delivers sharp, stabilized images the moment you raise it, without the need for setup or adjustment. No tripod. No extra weight. No restrictions. The AT/ST Balance is designed for effortless handheld use – giving you the freedom to move, react, and stay in the moment without compromising stability or image quality.
Field flattener lenses deliver an almost flat, completely distortion-free image – right up to the edges. Pin-sharp contours, high-contrast and true-to-life images: you can make out every single detail for quick and easy identification. Innovative lens coatings provide excellent colour rendering with high light transmission.
The precise alignment of sensors, motors, and optical as well as mechanical components ensures an extremely natural and comfortable viewing experience – even in motion. More than one thousand measurements per second continuously adjust the lens position, compensating instantly for even the slightest hand movements. The result is image stabilization with exceptionally low latency, delivering a steady, clear view without distracting after-effects. SWAROBALANCE defines new standards in observation quality.
THE STABILIZATION SYSTEM
The AT/ST Balance spotting scopes have a moving lens that is adjusted by an electric motor (voice coil motor) to offset movements. These motors work particularly quickly, very precisely, and with low friction – the pushing and pulling movements are smooth and continuous. They are also used in applications such as camera autofocus systems. The integrated gyroscope sensor measures the current movement of the spotting scope. Based on this, a calculation is made to determine which lens movement is necessary to compensate for the motion to result in a stable image. With the stabilization concept of the AT/ST Balance also in movement there is no perceptible “floating” or “after-image”, which is key to the unique natural sense of vision. Automatic locking of the moving lens in the event of a fall or a sudden interruption in the power supply protects the lens while also ensuring the best optical quality by keeping the lens in the central position.
SUPPLIED WITH
- RB-S rechargeable battery
- Battery charger including USB-C cable
- Carrying strap
- Objective lens cover and eyepiece cover
- Adapter plate
TECHNICAL DATA
AT BALANCE 18-45x65
Magnification 18-45x
Effective objective lens diameter (mm) 65
Exit pupil diameter (mm) 3.4-1.4
Exit pupil distance (mm) 20
Field of view (m/1,000 m/ft/1,000 yds)) 55-30/165-90
Field of view (degrees) 3.16-1.74
Field of view for eyeglass wearers (degrees) 3.16-1.74
Field of view, apparent (degrees) 57- 71
Shortest focusing distance (m/ft) 3.4/11.2
Diopter correction at 8 (dpt) > 5
Light transmission (%) 88
Objective filter thread M72 x 0.75
Dimensions L* x W* x H* (mm) 268 x 83 x 148/10.6 x 3.3 x 5.8
Approx. weight (g/oz) 1,470/51.9
Functional temperature: -20°C to +50°C (-4/+122°F) · Storage temperature: -30°C to +70°C (-22/+158°F) · IP protection class: IP68 · *Value with eyecups twisted in
SWAROVSKI OPTIK grants a warranty from the date of purchase for a period of 10 years for optical and mechanical components, and 5 years for electronic parts. The replaceable battery is covered by a statutory warranty period of 1 year, while the battery charger is covered for 3 years. More details about the AT/ST Balance, other SWAROVSKI OPTIK products, and repairs and services can be found at myservice.swarovskioptik.com
