Leica M EV1 with 28mm F2 Asph Summicron M

M EV1 with 28mm F2 Asph Summicron M

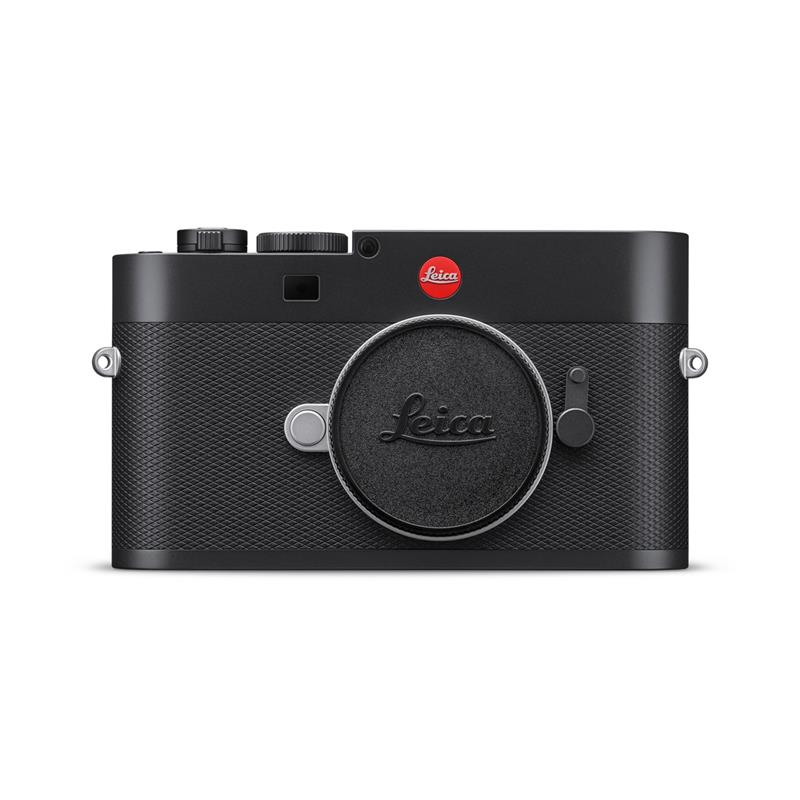

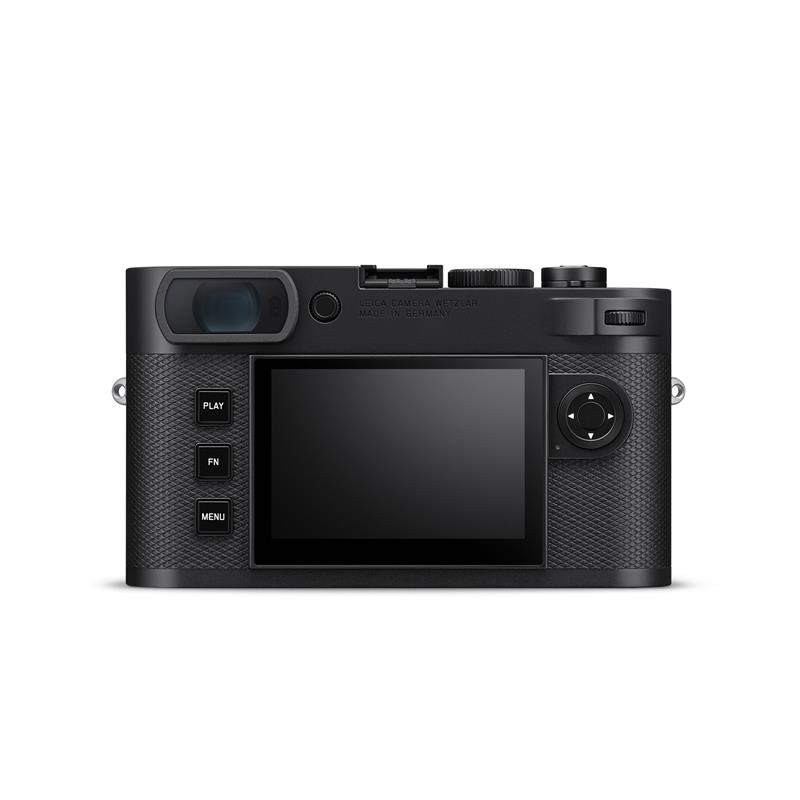

M EV1



The Leica M EV1 combines the traditional values of the M-System with the advantages of an integrated electronic viewfinder (EVF). The dioptre compensation and practical focus assists facilitate precise manual focusing – in particular when using the fast Leica Summilux and Noctilux lenses at very shallow depths of field, as well as with ultra wide-angle, telephoto and macro lenses.

The brilliant viewfinder shows the image exactly as it will be when the shutter snaps – in line with the lens used, focal length and focus distance. All the camera settings are readily visible, without having to take the camera away from your eye. For optimum control when focusing and maximum creative freedom when composing images. The Leica M EV1 is equipped with an outstanding 60 MP full-frame sensor and, just like its sister models – the M11-D and M11-P – includes groundbreaking Content Credentials technology, which reliably verifies the origin of an image.




Features
Compact, digital system camera
Integrated 5.76 MP electronic OLED viewfinder
Focus assist for easy manual focusing
Dioptre compensation from -4 to +2 dioptres
60 MP BSI CMOS full-frame sensor with Triple Resolution Technology
64 GB internal memory
Timeless, iconic design with an elegant leatherette covering featuring a diamond pattern
Convenient connectivity with the Leica FOTOS App









Specifications


Effective Megapixels:
60

Autofocus Points:
N/A

Autofocus System:
N/A

ISO Min / Max:
ISO 64 to ISO 50000

Frames Per Second:
4.5

Image Stabilisation:
No

Image Processor:
Leica Maestro series (Maestro III)

Sensor Format:
BSI CMOS

Video Recording Format:
N/A

Screen Resolution:
2332800 dots

Screen Size / Type:
2.95" LCD

Live View:
Yes

Viewfinder Coverage:
100%

Lens Mount:
Leica M

Exposure Modes:
Aperture-priority mode (A): automatic shutter speed control with manual aperture preselection
Manual (M): manual setting for shutter speed and aperture

Exposure Compensation:
±3EV in 1/3EV increments

Diopter Adjustment:
-4/+2

Battery Model:
BP-SCL7

Card Format:
UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card (SDXC cards up to 2TB)

Connectivity:
ISO accessory shoe with additional control contacts for Leica flash units and USB 3.1 Gen1 Type C

File Formats:
DNG™ (raw data, loss-free compression), DNG + JPG, JPG (DCF, Exif 2.30)

Flash Sync Speed:
Up to 1/180s

Flash Type:
External

Integrated Cleaning:
No

Shutter Speed Fast / Slow:
Mech. shutter: 60min to 1/4000s
Electro. shutter function: 60s to 1/16000s

Dimensions


Size:
147.2mm (W) x 80.3mm (H) x 38.45mm (D)

Weight (g):
Approx. 484g/402g (with/without battery)



Scope of Delivery:
Leica M EV1
Rechargeable battery (BP-SCL7)
Carrying strap made of black leather
USB-C cable
Quick start guide

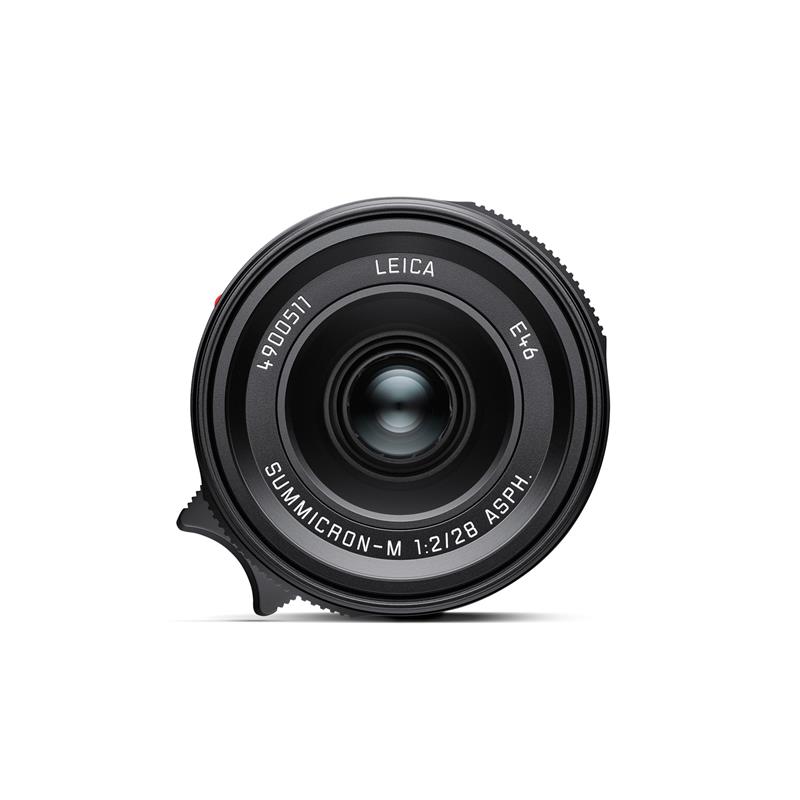

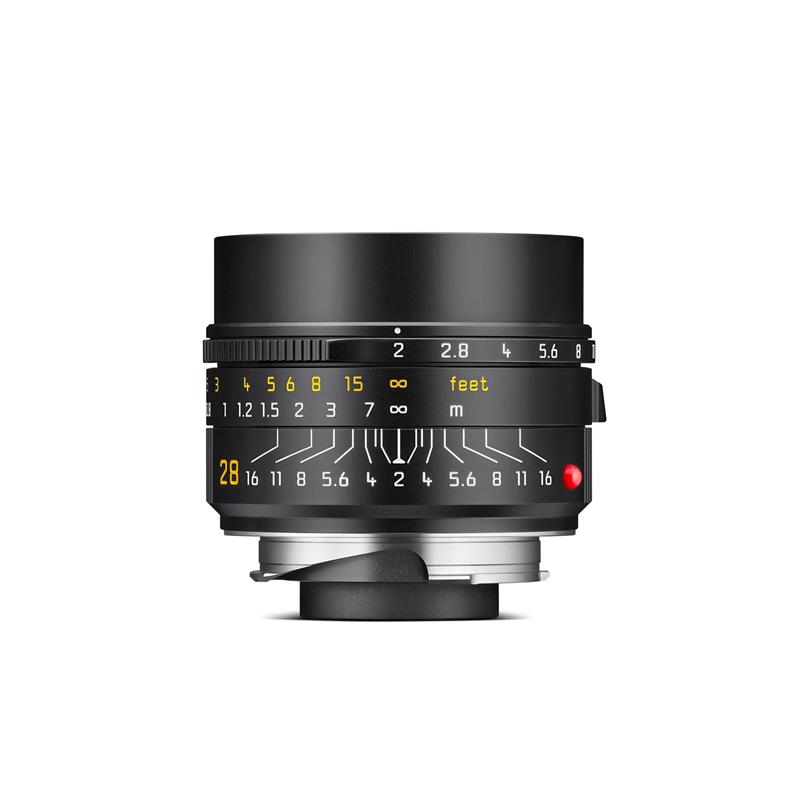

28mm F2 Asph Summicron M


The Leica Summicron-M 28mm F2 ASPH. is a fast and powerful lens that unlocks new photographic horizons with its wide-angle perspective and impressive close-focus limit of 40 centimetres. Its state-of-the-art technical specifications are crafted to maximise the capabilities of both current and future camera sensors.









Specifications


Focal Length (mm):
28

Filter Size (mm):
46

Lens Groups:
9 elements in 6 groups

Lens Mount:
Leica M

Lens Type:
Wide Angle Prime

Max Aperture:
F2

Maximum Format Size:
Full Frame

Minimum Aperture:
F16

Minimum Focus Distance (m):
0.4m

Weight (g):
275
